products details

Home Products

W Series AC EV charger 7kW/11kW/22kW

Name: W Series AC EV charger 7kW/11kW/22kW
Brand: Door Energy Limited
SKU: W Series
Availability: InStock

Brand Name:	DOOR
Model Number:	W Series
MOQ:	1PC
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/CB

Power Supply:

1P+N+PE

Rated Voltage:

AC 230V

Rated Current:

32A

Frequency:

50/60Hz

Output Voltage:

AC 230V

Maximum Current:

32A

Rated Power:

7kW

Charge Connector:

GBT/Type 2 Socket

Enclosure:

ABS+PC

Front Panel:

ABS

Start Mode:

Plug&Charge/RFID Card/APP

Emergency Stop:

Yes

WiFi:

Optional

Ethernet/3G/4G:

Optional

OCPP:

OCPP 1.6 (OCPP 2.0 Optional)

Energy Meter:

RCD:

30mA Type A + 6mA DC

Ingress Protection:

IP65

Impact Protection:

IK08

Certification:

CE | CB（(In Progress)）

Certification Standard:

EN/IEC 61851-1: 2017, EN/IEC 61851-21-2: 2018

Warranty:

1 Year

Installation:

Wall-mount/Pole-mount

Work Temperature:

-30℃ ~+50℃

Work Humidity:

5%~95%

Work Altitude:

<2000m

Package Dimension:

440*400*170mm (L*W*H)

Gross Weight:

5.1kg

External Package:

Carton

Product Description

W Series Ac chargers

The W Series Ac chargers are specifically designed for commercial applications, offeringreliable performance, smart connectivity, and flexible installation options.

————————————————————————————————————————————————————————————————————————————————————

1.Lower Deployment cost

85%lower CAPEX compared to DC fast charging, with simpler installation requirements and reduced electrical infrastructure costs.

2.Ideal For Long Parking

Perfect for 4-10 hour parking scenarios like employee parking, residential parking, and business park applications.

3.Scalable Deployment

Easily scale from 2 to 100+ charging points with modular design and phased deployment capabilities.

4.Smart Management

Advanced features including APP control, RFlD access,OCPP platform integration, and dynamic load balancing.

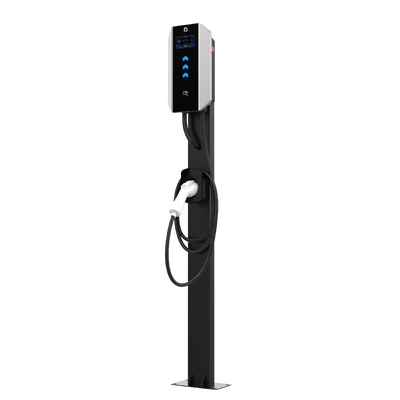

W Series AC EV charger 7kW/11kW/22kW 0

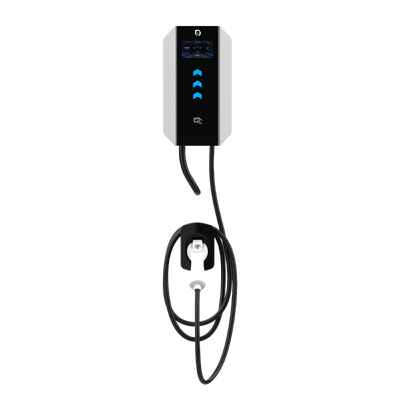

W Series AC EV charger 7kW/11kW/22kW 1

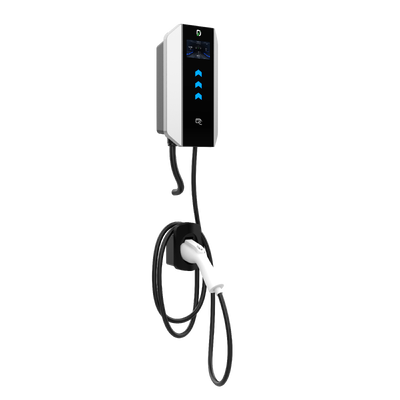

W Series AC EV charger 7kW/11kW/22kW 2

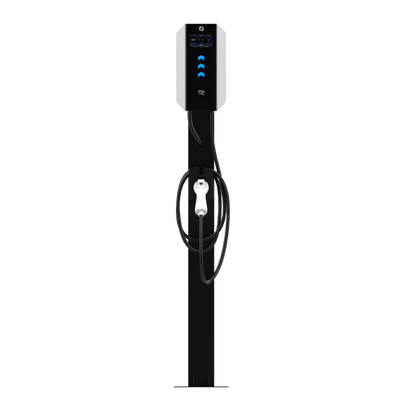

W Series AC EV charger 7kW/11kW/22kW 3

Tags:

Mobile EV Charger

Mobile Light Tower

Battery Energy Storage System

DC EV Charger

AC EV Charger

Mobile EV Charger

Mobile Light Tower

Battery Energy Storage System

DC EV Charger

AC EV Charger

products details

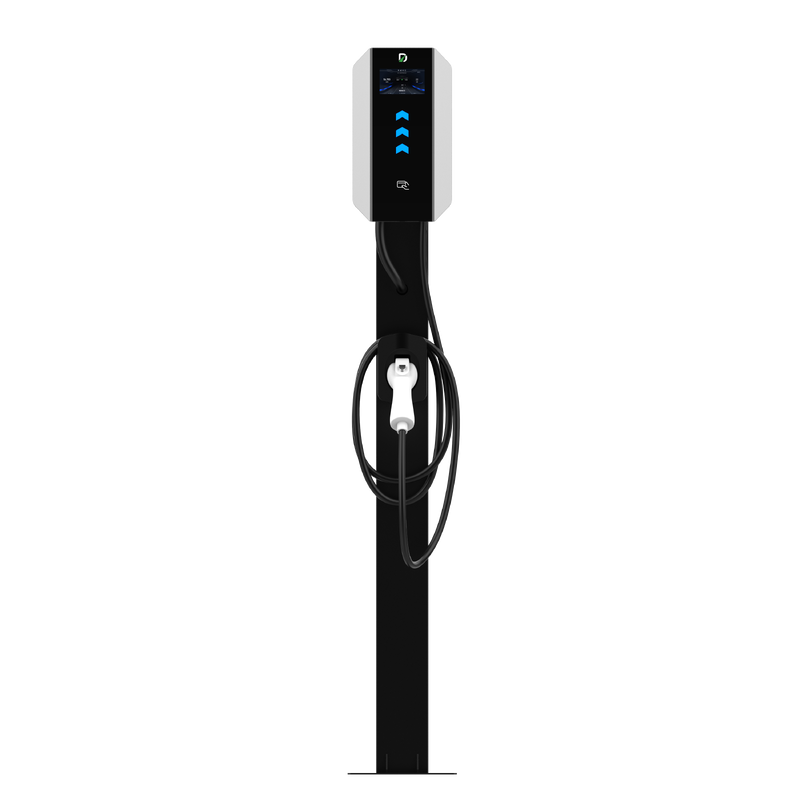

W Series AC EV charger 7kW/11kW/22kW

W Series AC EV charger 7kW/11kW/22kW

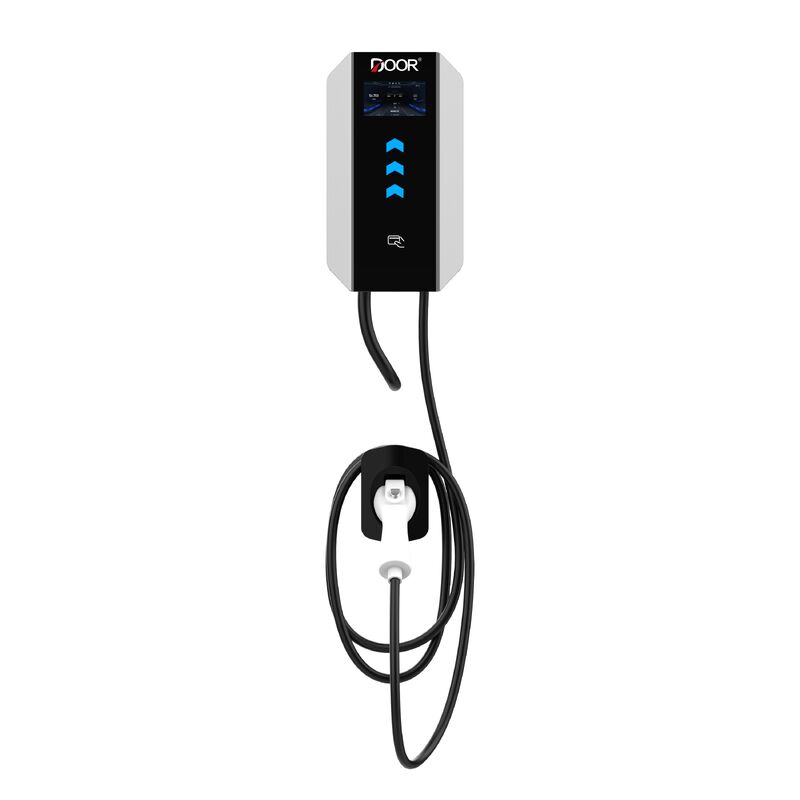

Sleek Design 22KW AC EV Charger
