Stacked Home Energy Storage 172V-233V Stackable Energy Storage System 10KW 20KW

Stacked Home Energy Storage 172V-233V Stackable Energy Storage System 10KW 20KW

Brand Name:	DOOR
Model Number:	ESS-C
MOQ:	2PC
Price:	Negotiable
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Battery Chemistry:

LiFePO4@GF

Total Capacity::

20kwh

Operating Voltage:

172V-233V

On-Grid Power:

20KW

Nominal Energy:

20KWh/5.12KWh*4Pack

On-Grid Voltage:

380Vac/3W+N+PE

On-Grid Current:

≤32A

On-Grid Frequency:

50HZ/60HZ

Off-Grid Output Power:

10KW

Off-Grid Voltage:

380Vac/3W+N+PE

Off-Grid Current:

≤16A

PV Input Voltage:

200Vdc-1000Vdc

PV Input Power:

20KW

Battery Cycle Life:

＞6000/Cycles

Operating Temperature:

-20°C～60°C

Dimension:

600*550*1200mm

Weight:

＜210kg

Highlight:

Stacked Home Energy Storage

240V Stackable Energy Storage System

172V Stackable Energy Storage System

Product Description

LIFEPO4 BATTERY STACKED HOME ENERGY STORAGE ALL IN ONE MACHINE

Stacked Home Energy Storage

The system uses high-efficiency photovoltaic inverters and safe long-life battery modules, and the modular design makes power expansion easy and convenient. The system supports various energy needs such as uninterruptible switching power supply and remote control, and also configures intelligent operation solutions based on electricity usage habits and peak and valley electricity prices, bringing economical, safe and convenient operation experience to families.

1. Integrated design
Plug and play interface, quick installation, battery modularity, flexible capacity expansion.

2. High-performance battery module
LiFePO4 safe battery, cycle life> 6000 cycles, providing reliable power supply and more economical use

3. Multiple working modes
The system supports high voltage, low voltage, on-grid and off-grid modes. It charges during low hours and discharges during peak hours, which can reduce electricity costs and monitor, manage and control household energy in real time.

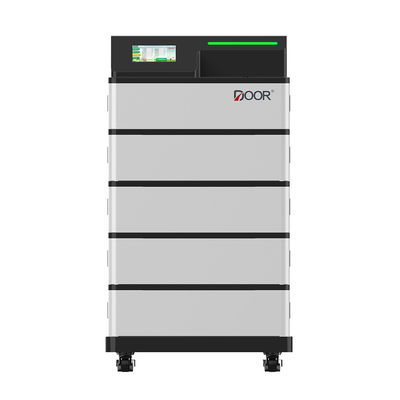

Stacked Home Energy Storage 172V-233V Stackable Energy Storage System 10KW 20KW 0

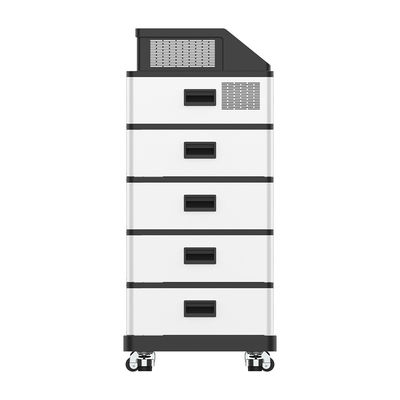

Stacked Home Energy Storage 172V-233V Stackable Energy Storage System 10KW 20KW 1

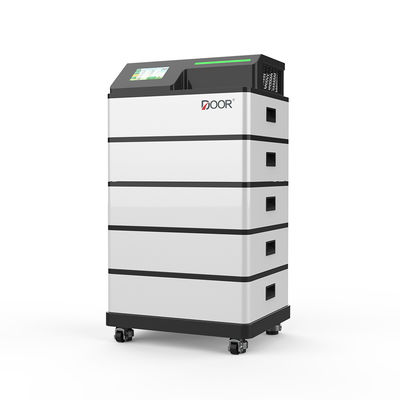

Stacked Home Energy Storage 172V-233V Stackable Energy Storage System 10KW 20KW 2

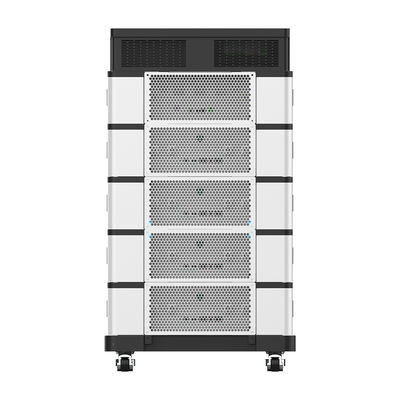

Stacked Home Energy Storage 172V-233V Stackable Energy Storage System 10KW 20KW 4

Please feel free to contact us for more detail!
