1MW LIFEPO4 20HQ Containerized Energy Storage 280Ah 1P224S Energy Storage Box

Brand Name:	DOOR
Model Number:	ESS-B
MOQ:	1PC
Price:	Negotiable
Payment Terms:	T/T, L/C, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Battery Chemistry:

LiFePO4@GF

Total Capacity:

1MWh

Nominal Capacity:

280Ah

Battery Cluster:

1P224S

Battery System:

6*1P224S

Operating Voltage:

600V-800V

Rated Output Power:

1MW

Max AC Current:

1400A

Rated Operating Voltage:

400Vac

Operating Temperature:

-30°C～55°C

Operating RH:

10%~90%

Storage RH:

0%~95%

Working Altitude:

≤ 3000m

Communication Protocol:

Modus TCP/IP, Modus RTU

Communication Connect:

Ethernet、RS485

Highlight:

1MW 20HQ Containerized Energy Storage

1P224S Energy Storage Box

20HQ Containerized Energy Storage 280Ah

Product Description

1MW CAPACITY LIFEPO4 LITHIUM BATTERY 20HQ CONTAINER ENERGY STORAGE SYSTEM SOLUTION FOR OUTDOOR USE

Container Energy Storage System

The system provides 1 MWh capacity and 1 MW output, with flexible configuration and support for parallel unit connections. Its modular design enhances availability, making it ideal for solar + energy storage + grid services and EV charging stations.

1. Integrated Design
The container design facilitates transportation and installation, reducing both transportation and construction costs.

2. High-Rate Fast Charging/Discharging
The system supports 1C charging/discharging and fast responds in < 200 ms, ideal for grid frequency regulation and high-power EV charging.

3. Flexible Expansion
The system can be easily configured and expanded, supporting parallel connection of multiple units for improved availability and easier maintenance.

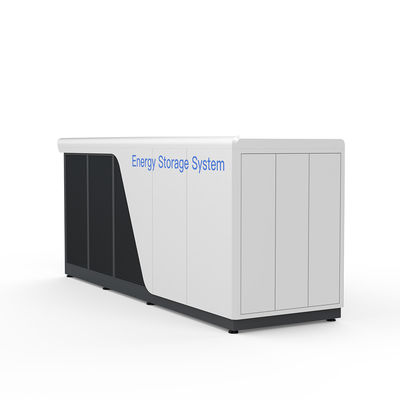

1MW LIFEPO4 20HQ Containerized Energy Storage 280Ah 1P224S Energy Storage Box 0

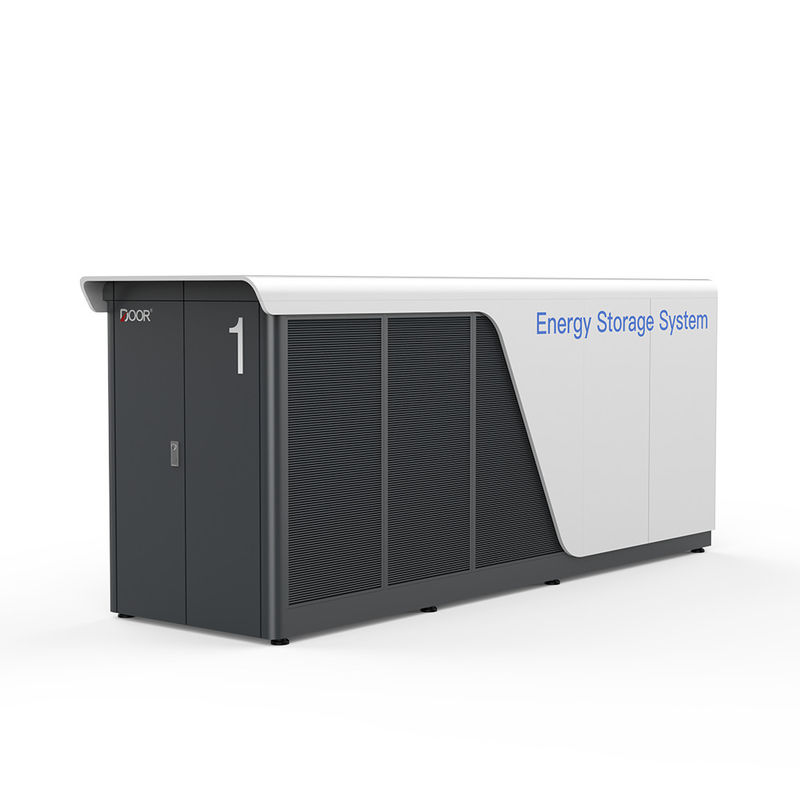

1MW LIFEPO4 20HQ Containerized Energy Storage 280Ah 1P224S Energy Storage Box 1

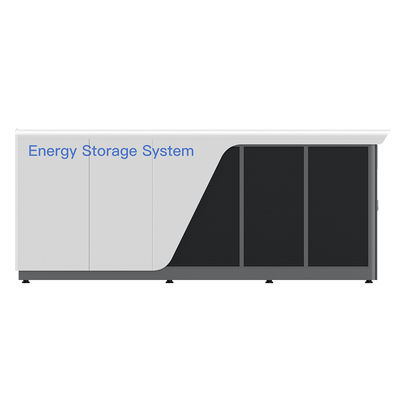

1MW LIFEPO4 20HQ Containerized Energy Storage 280Ah 1P224S Energy Storage Box 2

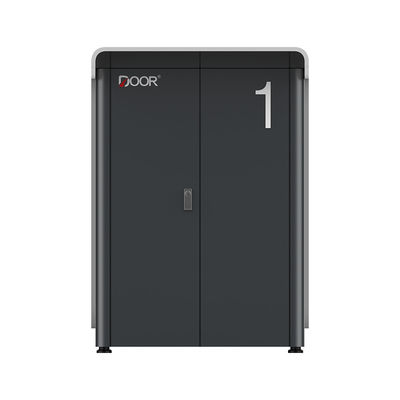

1MW LIFEPO4 20HQ Containerized Energy Storage 280Ah 1P224S Energy Storage Box 4

1MW LIFEPO4 20HQ Containerized Energy Storage 280Ah 1P224S Energy Storage Box 6

Please feel free to contact us for more detail!
