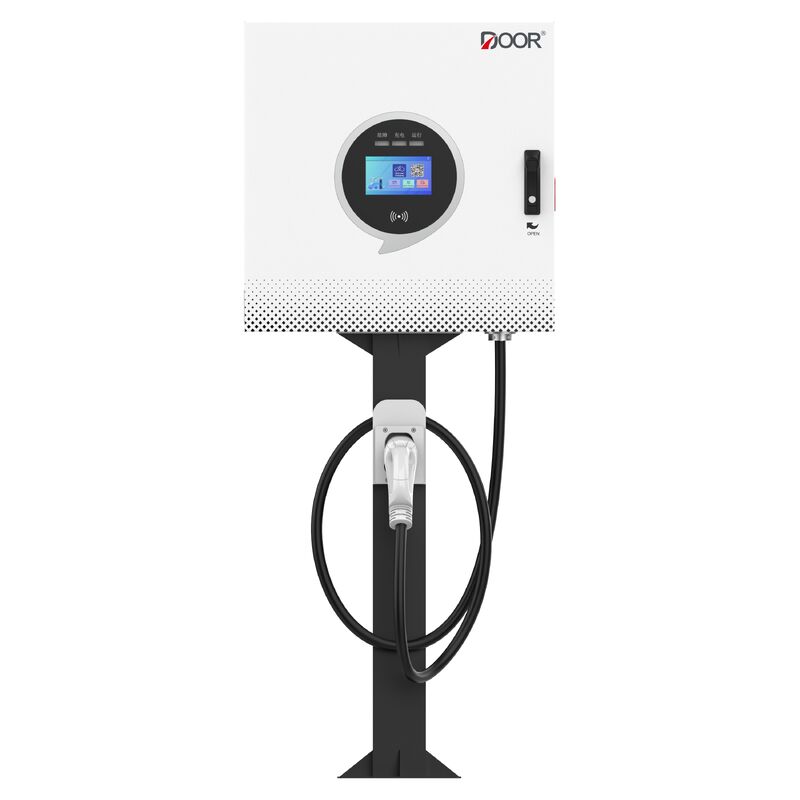

C Series DC EV Charger 20kW/30kW/40kW Wall-mounted &Floor-stand

Name: C Series DC EV Charger 20kW/30kW/40kW Wall-mounted &Floor-stand
Brand: Door Energy Limited
SKU: C Series
Availability: InStock

Brand Name:	DOOR
Model Number:	C Series
MOQ:	1PC
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/CB

Power Supply:

3P+N+PE

Rated Voltage:

AC400V

Frequency:

50/60Hz

Output Voltage:

DC 200~750V

Maximum Current:

100A

Rated Power:

30kW

Charge Connector:

CCS2/GBT/CCS1/CHAdemo

Cable Length:

Enclosure:

Galvanized Steel

LED Indicator:

Green/Blue/Red

LCD Display:

7 Inch

Start Mode:

Plug&Charge/RFID Card/APP

Emergency Stop:

Yes

WiFi:

Optional

Ethernet/3G/4G:

Optional

OCPP:

OCPP 1.6 (OCPP 2.0 Optional)

Energy Meter:

MID Certified

RCD:

Type A

Ingress Protection:

IP54

Impact Protection:

IK08

Certification:

CE | CB（(In Progress)）

Certification Standard:

EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014

Warranty:

2 Years

Installation:

Wall-mount/Pole-mount

Cooling Method:

Fan Cooling

Noise:

≤ 60dB

Work Temperature:

-30℃ ~+50℃

Work Humidity:

5%~95%

Work Altitude:

<2000m

Package Dimension:

1070*960*600mm (L*W*H)

Gross Weight:

111kg

External Package:

Carton

Product Description

C Series Dc chargers

The C Series Dc chargers in 20kw, 30kw, and 40kw are specifically designed for hotels,resorts, high-end restaurants, golf clubs, and business parks. Certified, iP54 protected, and backed by a 2-year extendable warranty.

_______________________________________________________________________________________________________________

1.Medium Charging Speeds

Significantly reducing charging times compared to AC, tailored to match typical vehicle dwell times at destinations, helping improve usage turnover efficiency.

2.ldeal For Short & Medium Stays

Perfect for 1-4 hour parking scenarios like hotels, premium dining, and golf clubs where guests expect a fast, convenient top-up.

3.Premium Property Value

Elevate your brand by offering high-end, reliable EV charging amenities that attract affluent EV drivers and enhance customer satisfaction.

4.Smart Management

Advanced features including APP control, RFlD access,OCPP platform integration, and dynamic load balancing.

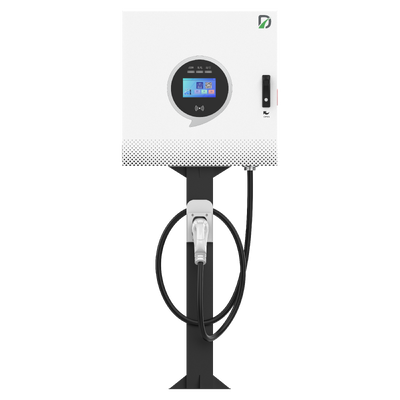

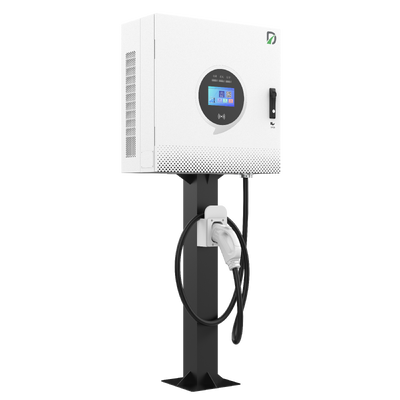

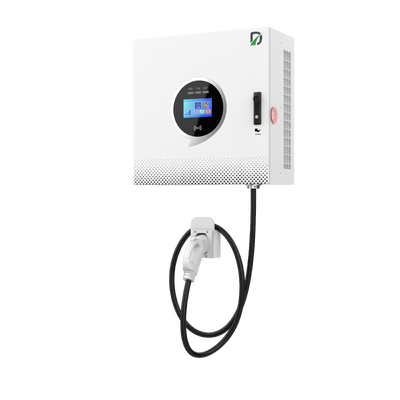

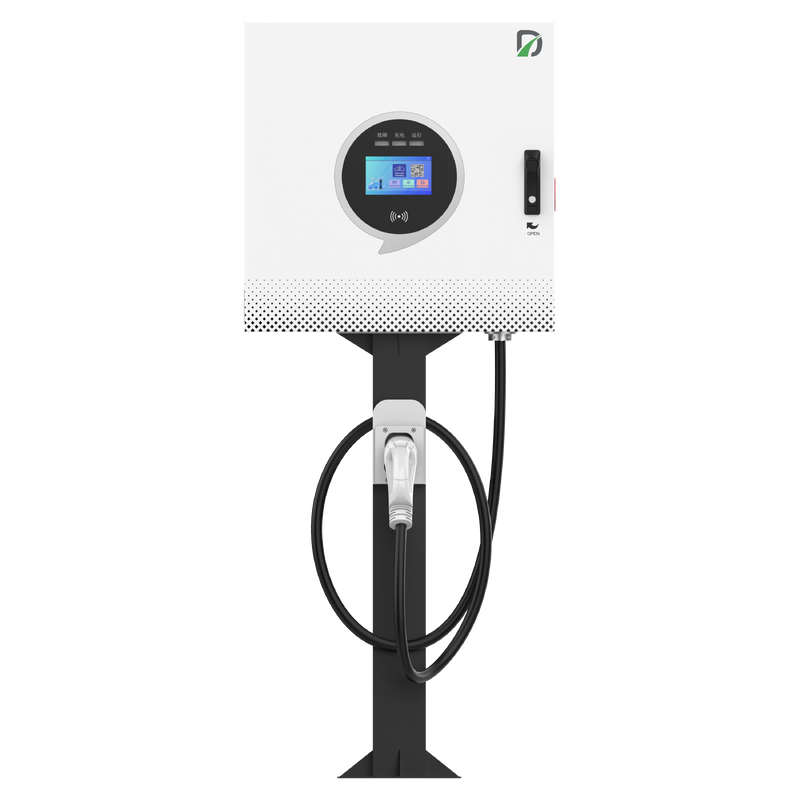

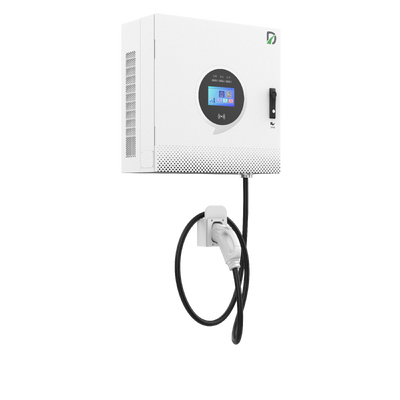

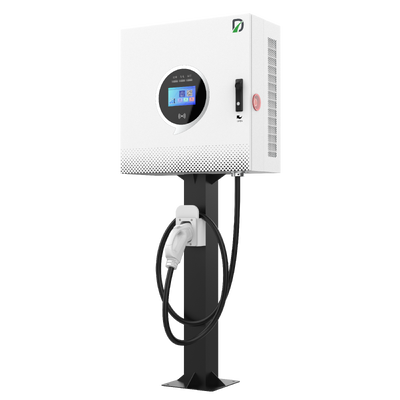

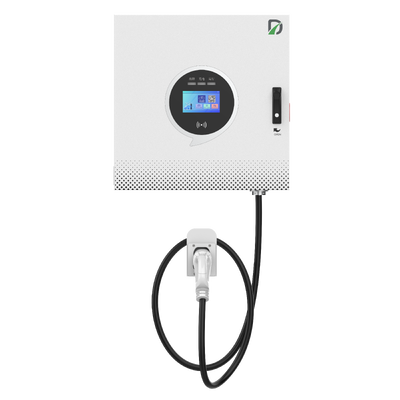

C Series DC EV Charger 20kW/30kW/40kW Wall-mounted &Floor-stand 0

C Series DC EV Charger 20kW/30kW/40kW Wall-mounted &Floor-stand 1

C Series DC EV Charger 20kW/30kW/40kW Wall-mounted &Floor-stand 2

C Series DC EV Charger 20kW/30kW/40kW Wall-mounted &Floor-stand 3
