H Serles MW-class Flexible Charging station 360kW/480kW/720kW/800kW/1040kW

Brand Name:	DOOR
Model Number:	T Series
MOQ:	1PC
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/CB

Power Supply:

3P+N+PE

Rated Voltage:

AC380V ±15%

Frequency:

50/60Hz

Output Voltage:

DC 200~1000V

Maximum Current:

Up To 1600A

Output Circuits:

4-16 Connectors

Efficiency:

≥96%

Rated Power:

1040kW

Enclosure:

Galvanized Steel

LED Indicator:

Green/Blue/Red

LCD Display:

7.0 Inch

Start Mode:

Plug&Charge/RFID Card/APP

Emergency Stop:

Yes

WIFI:

Optional

Ethernet/3G/4G:

Optional

OCPP:

OCPP 1.6 (OCPP 2.0 Optional)

Energy Meter:

MID Certified

RCD:

Type A

Ingress Protection:

IP55

Impact Protection:

IK08

Certification:

CE | CB（(In Progress)）

Certification Standard:

EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014

Warranty:

2 Years

Installation:

Floor-stand

Cooling Method:

Fan Cooling/Liquid Cooling

Noise:

≤ 65dB

Work Temperature:

-20℃ ~+50℃

Work Humidity:

0%~95%

Work Altitude:

≤2000m

Package Dimension:

2100*770*1950 Mm

Gross Weight:

＞500kG

344kg External Package:

Wood Case

Product Description

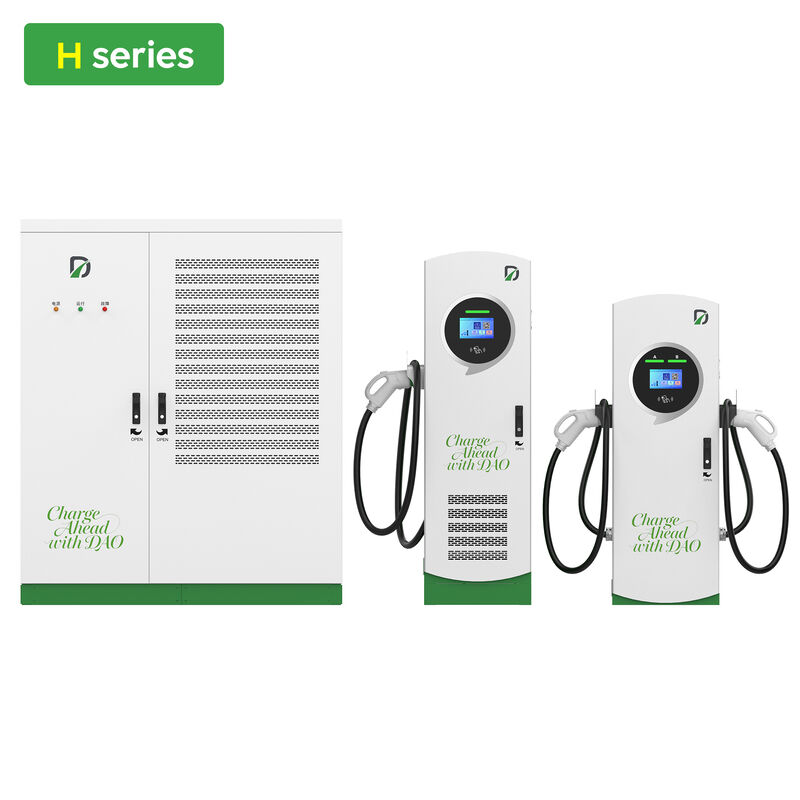

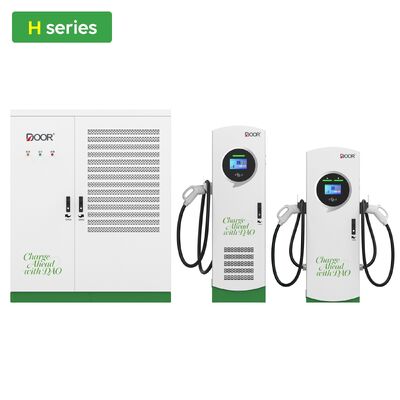

H Series DC Chargers

Engineered for large-scale cluster charging, delivering high-power density and intelligent power management for demanding commercial infrastructure.

1.Centralized Power Pool

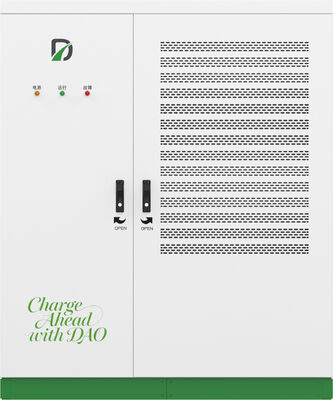

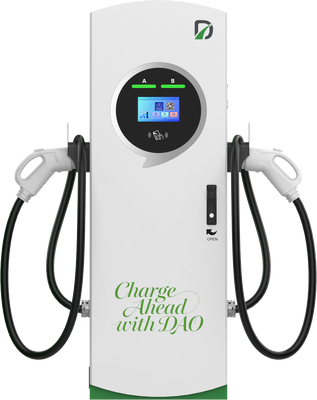

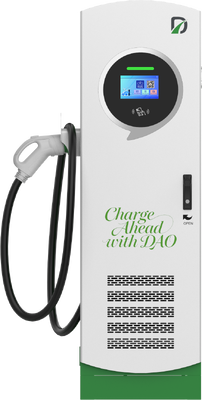

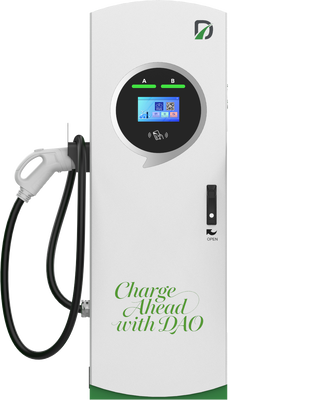

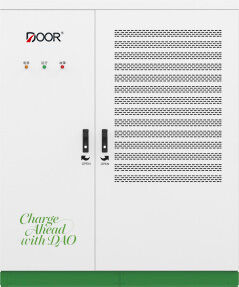

Power modules concentrated in a centralized pool with distributed dispensing terminals – shared power pool across the entire station.

2.Dynamic Load Balancing

Real-time intelligent power allocation maximizes resource utilization, accelerates vehicle turnover, and ensures optimal efficiency across all connected chargers.

3.Independent Cooling + Modular Redundancy

Dedicated cooling ensures stability under high-load cluster scenarios. Modular redundancy means single module failure won't affect the station – enabling uninterrupted operation.

4.All-Weather Versatility

Suitable for indoor and outdoor deployment. Ideal for large-scale cluster stations (outdoor installation requires higher engineering standards).

5.Better Long-Term ROI & Higher Throughput

Higher upfront cost, but long-term efficiency and returns outperform all-in-one solutions. Optimized power distribution significantly increases daily charging throughput and vehicle turnover – more vehicles served, more revenue generated. Perfect for commercial garages, public hubs, ultra-fast stations, and high-volume projects.
