U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW

Name: U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW
Brand: Door Energy Limited
SKU: U Series
Availability: InStock

Brand Name:	DOOR
Model Number:	U Series
MOQ:	1PC
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/CB

Power Supply:

3P+N+PE

Rated Voltage:

AC 400V

Frequency:

50/60Hz

Output Voltage:

DC 200~1000V

Maximum Current:

250A

Rated Power:

400kW

Charge Connector:

CCS2/CCS1/GBT/CHAdemo/Tesla

Cable Length:

Enclosure:

Galvanized Steel

LED Indicator:

Green/Blue/Red

LCD Display:

7.0 Inch

Start Mode:

Plug&Charge/RFID Card/APP

Emergency Stop:

Yes

POS Terminal:

Optional

WIFI:

Yes

Ethernet/3G/4G:

Yes

OCPP:

OCPP 1.6 (OCPP 2.0 Optional)

Effciency:

Max 95%

Power Factor:

≥ 0.99

THD:

≤ 5%

Energy Meter:

MID Certified

RCD:

Type A

Ingress Protection:

IP55

Impact Protection:

IK08

Certification:

CE | CB（(In Progress)）

Certification Standard:

EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014

Warranty:

2 Years

Installation:

Floor-stand

Cooling Method:

Fan Cooling

Noise:

≤ 60dB

Work Temperature:

-30° C~+50° C

Work Humidity:

5%~95%

Nork Altitude:

<2000m

Package Dimension:

1200*847*1948 Mm (L*W*H)

Gross Weight:

700kg

External Package:

Wood Case

Product Description

Meet The U Series Dc chargers

The U Series Dc chargers are specifically designed for public and retail applications, bringing industrial-grade resilience to high-traffic commercial spaces.

————————————————————————————————————————————————————————————————————————————————

Fully Sealed independent Air Duct

Double-layer louver design ensures complete protection for both air inlets and outlets.
Zero external dust intrusion during standby mode.
lsolates 99% of airborne particles, ensuring industrial-grade reliability.

Active Dust Removal System

Industry Exclusive (Patented): Competitors cannot replicate this performance.
Smart Automation: Automatically triggers vibration-based dust removal after every 10 charging sessions (frequency is fully customizable).
Foolproof Safety: During the cleaning cycle, the screen locks with the prompt "Dust Removal in Progress, Do Not Charge" and displays an E-stop status to prevent manual errors.Normal operation auto-resumes upon completion.

Ultra-Fast Simultaneous Charging

Wide power coverage scaling up to 400kw.
Perfectly adapted for heavy-duty electric trucks, construction machinery, and high-turnover retail charging hubs requiring massive power delivery.

Ultra-Quiet Design

Full-load operating noise s65dB across all power ranges.
Ideal for stations near residential zones, commercial centers, or night-time off-peak charging, eliminating the risk of environmental noise complaints.

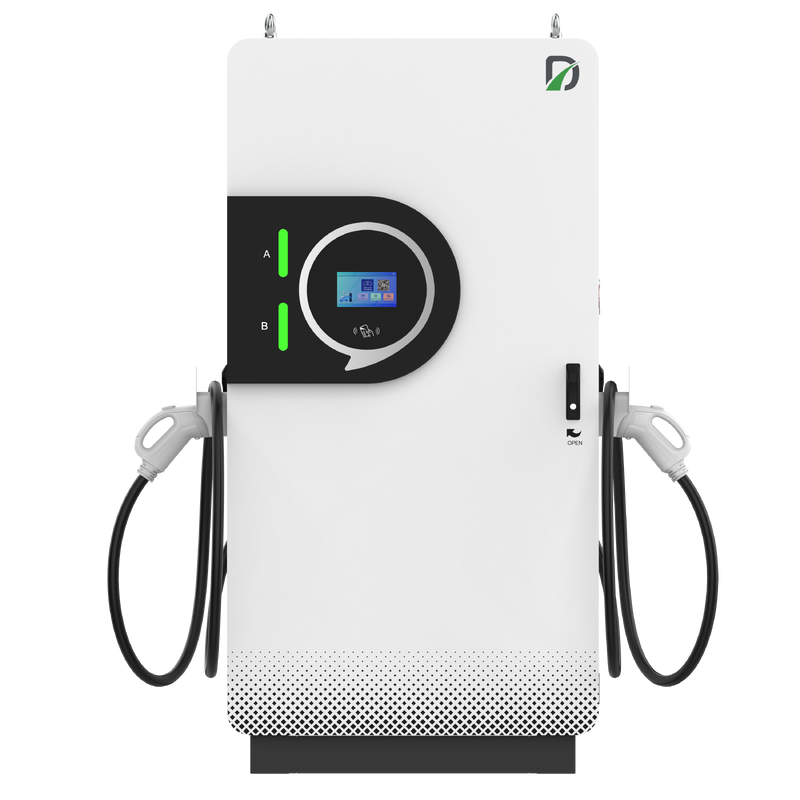

U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW 0

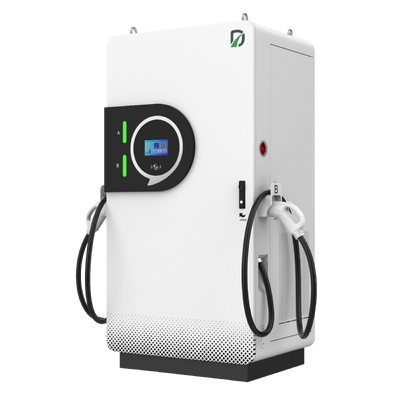

U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW 1

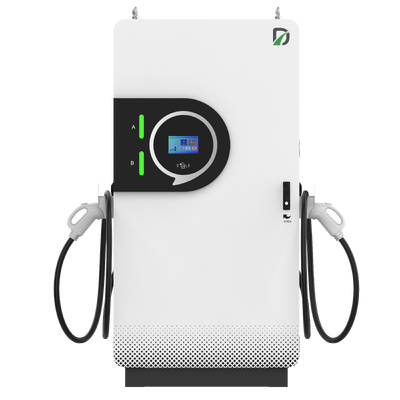

U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW 2
